Perfluoropolyether (PFPE), also known as perfluoroalkylether (PFAE) or perfluoropolyalkylether (PFPAE), is a specialty perfluorinated polymer with an average molecular weight of 500–16,000. Composed exclusively of carbon (C), fluorine (F) and oxygen (O), it delivers unmatched performance in extreme conditions.
CAS No: 69991-67-9 and 60164-51-4
Documents Download
Certifications: EU REACH Registered | PFAS-Free | SGS RoHS Tested | NSF H1 Certified
|
|
PFPE oils are categorized into four structural types: D-type, K-type, Y-type and Z-type.
D-type PFPE features an unshielded structure with relatively lower stability. K-type adopts a fully shielded branched structure and delivers the optimal stability. The performance of Y-type and Z-type falls between D-type and K-type. Our product range covers both K-type and Y-type PFPE fluids..
Perfluoropolyether(PFPE) Oil is mainly used in the areas with heat, chemicals, solvents, corrosion, toxicity, flammability, etc. It can be used in original form or to be formulated into greases for the specific applications in the industries of chemical, electronic, cosmetic, machinery, aerospace, nuclear, etc that require high lubricating performance.
PFPE Base Oil For Grease B Grades are perfluorinated polyether inert fluids with only carbon (C), fluorine(F), and oxygen(O) atoms on the molecular chain. They not only maintain the excellent properties of perfluoropolyether fluids, but also has many unique properties, such as excellent high temperature stability, good low temperature properties, low evaporative loss and high viscosity index. They are widely used as base oil to formulate PFPE greases for specific appliations to meet the most challenging demands.
NSF H1 Registered: B‑800, B‑1500, B‑1800.
| Properties | Units | B-20 | B-40 | B-60 | B-150 | B-180 | B-260 | B-520 | B-800 | B-1200 | B-1500 | B-1800 | B-2600 | B-3500 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Equivalent Product | Krytox GPL 101 | Krytox GPL 102 | Krytox GPL 103 | Krytox GPL 105 | Krytox GPL 106 | Krytox GPL 107 | Krytox XHT-500 | Krytox XHT-750 | Krytox XHT-1000 | |||||
| Y04 | Y06 | Y15 | Y25 | Y45 | YU700 | YR | YPL1500 | YR1800 | ||||||
| Working Temperature Range | °C | -70~104 | -63~132 | -60~150 | -54~160 | -51~179 | -42~183 | -36~204 | -36~260 | -33~272 | -30~288 | -25~300 | -15~350 | -5~360 |
| Average molecular weight | a.m.u | 800 | 1500 | 2200 | 3000 | 3300 | 4000 | 5000 | 6000 | 6600 | 7500 | 8200 | 11000 | 13000 |
| Kinematic Viscosity at 20℃ | cSt | 17.4 | 38 | 62 | 142 | 180 | 261 | 522 | 822 | 1200 | 1535 | 1820 | 2600 | 3500 |
| at 40℃ | cSt | 7.8 | 15 | 24 | 48 | 60 | 83 | 160 | 243 | 345 | 450 | 510 | 750 | 1000 |
| at 100 °C | cSt | 2 | 3 | 4.4 | 7.2 | 9 | 11 | 18 | 25 | 33 | 42 | 46 | 65 | 88 |
| Viscosity index | - | 29 | 70 | 100 | 111 | 116 | 124 | 134 | 136 | 145 | 148 | 157 | 171 | |
| Pour Point | °C | -70 | -63 | -60 | -54 | -51 | -42 | -36 | -36 | -33 | -30 | -20 | -15 | -5 |
| Evaporation weight loss at 120 °C, 22 hr | % | 75 | 35 | 10 | 5 | 3 | 3 | 1 | 1 | – | - | – | – | |
| at 204 °C, 22 hr | % | - | – | - | - | - | – | 7 | 3 | 1 | 1 | 0.8 | 0.6 | 0.5 |
| Surface tension at 20 °C | dyne/cm | 20 | 20 | 20 | 22 | 22 | 22 | 22 | 23 | 24 | 24 | 24 | 24 | 24 |
| Density at 0 °C | g/cm3 | 1.89 | 1.91 | 1.91 | 1.92 | 1.93 | 1.93 | 1.94 | 1.95 | 1.95 | 1.95 | 1.95 | 1.95 | 1.95 |
PFPE Vacuum Pump Oil Topda K-L Grades are perfluorinated polyether inert fluids with only carbon (C), fluorine(F), and oxygen(O) atoms on the molecular chain. They are ideal for use in vacuum pumps as sealing & lubricating fluid and working fluids especially in the systems which are exposed to strongly oxidative substances like oxygen, ozone or nitric oxides as well as highly reactive substances like halogens and hydrogen halides. Because of their high stability and safety, especially the high reliability of working under particularly harsh conditions, no working medium can be comparable to perfluoropolyether oil in such harsh environment.
| Properties | Units | K-L 606 | K-L 1406 | K-L 1606 | K-L 2506 |
|---|---|---|---|---|---|
| Equivalent Product | Fomblin Y LVAC 06/6 Krytox VPF 1506 | Fomblin Y LVAC 14/6 Krytox VPF 1514 | Fomblin Y LVAC 16/6 | Fomblin Y LVAC 25/6 Krytox VPF 1525 |
|
| Average Molecular Weight | a.m.u. | 2,400 | 3,500 | 4,300 | 4,600 |
| Density at 20°C | g/cm3 | 1.88 | 1.89 | 1.89 | 1.90 |
| at 50°C | g/cm3 | 1.82 | 1.83 | 1.83 | 1.84 |
| at 100°C | g/cm3 | 1.73 | 1.74 | 1.74 | 1.75 |
| at 200°C | g/cm3 | 1.54 | 1.55 | 1.55 | 1.56 |
| Viscosity at 20°C | mm2/s | 62 | 142 | 175 | 261 |
| at 50°C | mm2/s | 16 | 32 | 37 | 53 |
| at 100°C | mm2/s | 4.4 | 7.2 | 8 | 11 |
| at 200°C | mm2/s | 1.2 | 1.7 | 1.8 | 2.2 |
| Viscosity Index | 71 | 97 | 110 | 113 | |
| Vapor Pressure at 20°C | torr | 4×10-7 | 2×10-7 | 5×10-9 | 1×10-7 |
| at 50°C | torr | 1×10-5 | 3×10-6 | 2×10-7 | 1×10-6 |
| at 100°C | torr | 1×10-3 | 1×10-4 | 2×10-5 | 3×10-5 |
| at 200°C | torr | 5×10-1 | 1×10-2 | 1×10-2 | 2×10-3 |
| Pour Point | °C | -60 | -54 | -40 | -48 |
| Boiling Range, 10% | °C | 160 | 200 | 210 | 200 |
| Boiling Range, 90% | °C | 220 | 280 | 280 | 300 |
| Heat of vaporization at 150~250°C | cal/g | 9 | 7 | 7 | 6 |
| Volatility (149°C/22hr) | % | 6 | 1 | 0.1 | 0.5 |
| (204°C/22hr) | % | 35 | 3 | 8.9 | Nil |
| Surface Tension at 20°C | dyne/cm | 17 | 18 | 18 | 19 |
PFPE Vacuum Pump Oil Topda K-H Grades are suggested for applications requiring the highest quality vacuum such as in scanning electron and transmission microscopes, mass spectrometers, particle accelerators, ion implantation, plasma and vapor deposition processes. In addition, it is suggested for pumps handling reactive gases such as UF6, F2, oxygen, ozone and tritium, as the fluid can be used in direct contact with these gases without reaction and fluid degradation.
| Properties | Units | K-H 1808 | K-H 2509 | K-H 4009 | K-H 14013 |
|---|---|---|---|---|---|
| Equivalent Product | Krytox VPF 1618 | Fomblin Y HVAC 25/9 Krytox VPF 1531 | Fomblin Y HVAC 40/11 | Fomblin Y HVAC 140/13 | |
| Average Molecular Weight | a.m.u. | 2,800 | 3,400 | 4,400 | 7,600 |
| Density at 20°C | g/cm3 | 1.89 | 1.90 | 1.91 | 1.92 |
| Viscosity at 20°C | cSt | 185 | 285 | 474 | 1400 |
| Viscosity Index | 120 | 126 | 129 | 140 | |
| Pour Point | °C | -45 | -41 | -38 | -30 |
| Refractive Index | (nD20) | 1.300 | 1.301 | 1.304 | 1.304 |
| Specific Heat at 20°C | cal/g | 0.24 | 0.24 | 0.24 | 0.24 |
| Heat of vaporization at 200°C | cal/g | 9 | 7 | 7 | 5 |
| Working Temperature | °C | -45~190 | -40~195 | -38~200 | -30~280 |
PFPE High Temperature & Ultra-high Vacuum Lubricating Oils S Grades are perfluorinated polyether inert fluids. They are especially developed for use in high temperature and ultra-high vacuum environments as lubricating Oils.
| Properties | Unit | S-2500 | S-3000 | S-3500 |
|---|---|---|---|---|
| Appearance | Clear Liquid | |||
| Kinetic Viscosity at 20℃ | cSt | 2500 | 3000 | 3500 |
| at 40℃ | cSt | 740 | 860 | 995 |
| at 100℃ | cSt | 64 | 70 | 84 |
| Density at 0°C | g/cm3 | 1.95 | 1.96 | 1.97 |
| Viscosity index | 158 | 161 | 166 | |
| Evaporation weight loss at 204 °C, 22 hr | % | ＜0.75 | ＜0.1 | ＜0.1 |
| Surface tension at 20°C | dyn/cm | 22 | 22 | 22 |
| Pour Point | ℃ | -24 | -21 | -18 |
| Working Temperature | ℃ | -24~305 | -21~315 | -18~325 |
Perfluoropolyether Topda P Grades are fully fluorinated oils especially developed for use as polymer additives and can be compounded with thermoplastic and elastomeric materials to enhance the final properties of the host materials without changing their mechanical properties, color, etc.
| Properties | Unit | P-10 | P-100 | P-110 |
|---|---|---|---|---|
| Equivalent Product | Fomblin Y45 | |||
| Appearance | Clear Liquid | |||
| Average Molecular Weight | a.m.u. | 2,000 | 4,800 | 5,000 |
| Kinetic Viscosity at 48℃ | cSt | 8 | 106 | 112 |
| Density 20℃ | g/cm3 | 1.88 | 1.88 | 1.90 |
| Volatility, 22h at 121 °C | % | - | - | ＜1% |
| Refractive Index | nD25 | 1.300 | 1.300 | 1.300 |
| Surface tension at 20 °C | dyn/cm | 18 | 18 | 18 |
| Pour Point | ℃ | <-70 | <-36 | <-36 |
PFPE Oil For Vapor Phase Soldering V Grades are perfluoropolyether Oils which are especially developed to be used as vapor phase soldering fluids, mainly used duiring the process of VPS, they can use latent heat of codensation of PFPE Vapor to melt solder.
Technical Index
Item Unit V-135 V-170 V-230
Appearance Colorless transparent liquid
Boiling Point ℃ 125-150 160-190 230-250
Kinetic Viscosity at 25°C mm2/s1.1 2.1 4.8
Pour Point ℃ -100 -97 -70
Density at 25°C g/cm31.73 1.77 1.82
Vapor Pressure at 25 °C KPa 0.75 0.10 ＜0.01
Breakdown Voltage kv/2.54mmgap ＞40 ＞40 ＞40
Volume Resistivity Ω· cm ＞1013＞1013＞1013
Dielectric Constant, 25 °C - 1.9 1.9 1.9
Flammability - Non-flammable Non-flammable Non-flammable
Toxicity - Non-toxic Non-toxic Non-toxic
Water Solubility ppm(wt) ＜14 ＜14 ＜14
Specific Heat at 25 °C J/g.℃ 0.97 0.97 0.97
Thermal Conductivity W/mk 0.065 0.065 0.065
Surface Tension, at 25 °C dyn/cm 13.5 14.0 14.0
PFPE Lubricating Oil For Special Gas System TOPDA O Grades are formulated by PFPE base oil and various of additives, such as antioxidants and anti-corrosion agents.They are kind of high-quality and high efficient lubricating oils with long service life used in the compression/transportation of oxygen, chlorine, fluorine and other special gases which are highly oxidizing, toxic, flammable, explosive and corrosive.
Technical Index
Item Unit O-01 O-02 O-03
Appearance Colorless transparent liquid
Kinetic Viscosity at 50°C mm2/s 18 32 39
Density at 50°C g/cm3 1.80-1.85 1.80-1.85 1.80-1.85
Acid Value mg KOH/g ≤0.05 ≤0.05 ≤0.05
PFPE Oil TOPDA T Grades are low molecular weight perfluoropolyether(PFPE) fluids with only carbon (C), fluorine(F), and oxygen(O) atoms on the molecular chain. PFPE Oil TOPDA T Grades are widely used as heat transfer fluids in chemical, semiconductor, nuclear and pharmaceutical industries.
Features
Technical Index
| Item | Unit | T-170 | T-200 | T-230 | T-270 |
|---|---|---|---|---|---|
| Boiling Point | °C | 170 | 200 | 230 | 270 |
| Apperance | Clear Transparent Liquid | ||||
| Kinematic Viscosity at 20°C | mm2/s | 2.10 | 3.20 | 5.50 | 15.50 |
| Pour Point | °C | ＜-90 | ＜-80 | ＜-70 | ＜-60 |
| Density at 25 °C | g/cm3 | 1.78 | 1.80 | 1.83 | 1.86 |
| Moisture Content | mg/kg | ＜20 | ＜20 | ＜20 | ＜20 |
| Acid Value | mg.KOH/g | 0.01 | 0.01 | 0.01 | 0.01 |
CAS No: 69991-67-9
INCI Name: Polyperfluoromethylisopropyl Ether
Topda C Grades are fluorinated fluids which are especially developed to be used as additives in high-end cosmetics and skin care products, they have features of good waterproof performance, no damage to the skin and no pores clog.
Properties Unit C-40 C-250 C-1250
Replacement Fomblin HC/04 Fomblin HC/25 Fomblin HC/R
Appearance Clear Liquid
Average molecular weight a.m.u 1800 3300 6500
Kinetic Viscosity
at 20℃cSt 40 250 1250
Density at 0°C g/cm31.90 1.91 1.92
Refractive index nD251.293 1.299 1.302
Surface tension at 20°C dyn/cm 22 22 22
Interfacial tension at 20°C dyn/cm 55 55 55
PFPE Solvent TOPDA SL Grades are low molecular weight perfluoropolyether, which can be used to replace CF-113 and other restricted ozone-deleting solvents. They have excellent chemical inertness and they are non-toxic, non-flammable and have no flash point, and they exhibit high dielectric properties, low surface tension and they are VOC free.
Technical Index
Item Unit SL-50 SL-90 SL-110
Appearance - Clear Transparent liquid Clear Transparent liquid Clear Transparent liquid
Kinetic Viscosity at 25°C cSt 0.45 0.76 1.35
Density at 20°C g/cm31.66 1.77 1.83
Boiling Point ℃ 55 96 110
Flash Point ℃ None None None
| Product | CAS No | Chemical Structure | Purity | Features |
|---|---|---|---|---|
| Perfluoropolyether Acyl Fluoride | 65208-35-7 |  | ≥98% | Can be converted into alcohol, acid, ester, amide and other derivatives |
| Perfluoropolyether methacrylate | - |  | ≥98% | Contains arylic terminal groups which can provide polymerization reactivity |

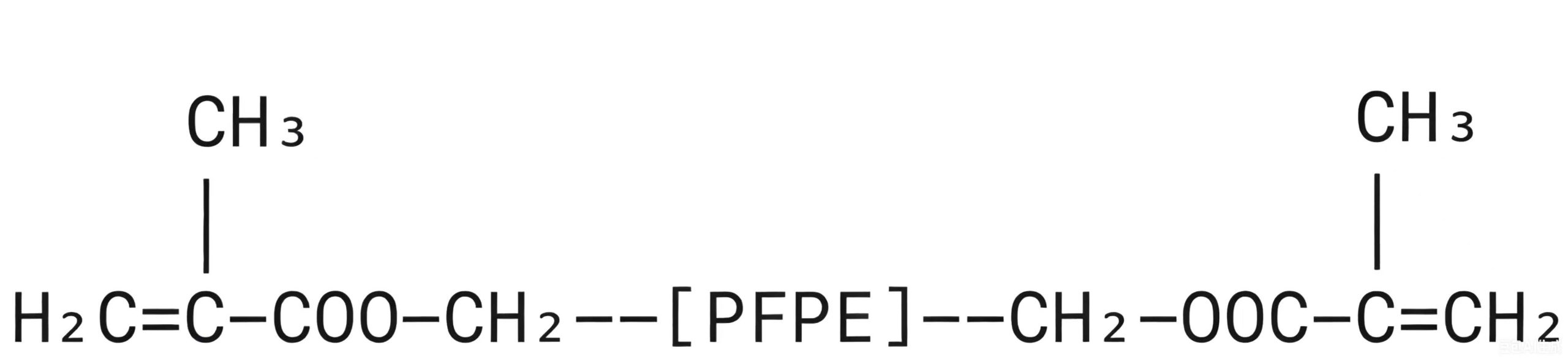

| Perfluoropolyether dimethacrylate |  | ≥98% | Contains two end groups of methacrylate which can provide polymerization reactivity | |
| Perfluoropolyether Alcohol | 90317-77-4 |  | ≥98% | Contains active hydroxyl groups that can react with groups such as epoxy, isocyanate or anhydride |
| Perfluoropolyether di-Alcohol | - |  | ≥95% | Contains functional double terminal hydroxyl groups, it can react with conventional polymer materials. |
| Perfluoropolyether Carboxylic Acid | 51798-33-5 |  | ≥98% | Contains active carboxyl group that can react with hydroxyl, amino and other groups |
| Perfluoropolyether Methyl Ester | - |  | ≥98% | Contains active ester group that can react with hydroxyl, amino and other groups |
